PowerHub Pro US
PowerHub Pro US
TA-7545US
PowerHub Pro takes the PowerHub range to a new level. The use of the latest GaN technology enables USB charging across 3 outlets up to an amazing 50 watts combined with 2 tamper resistant AC outlets. The USB Type-C outlets feature USB Power Delivery (PD) making them ideal for charging tablets and even small to medium laptops!
Key Features
-
Provides guests with 2 easy-to-find electrical outlets and 3 USB charge ports.
-

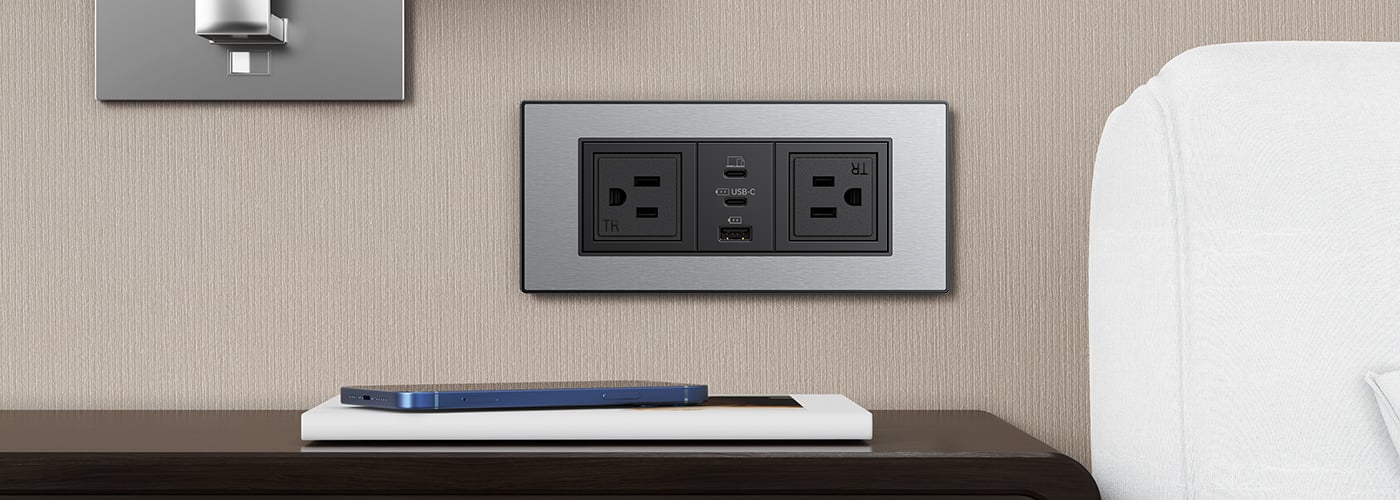

Designed for installing flush into furniture, millwork, or case goods.
-
Fast-charging USB ports support a wide range of portable devices.
-
Passthrough US 3-pin plug. Don’t lose a precious outlet in your guest room.
-
UL Certified to UL962A, UL498 and UL1310.
-
Engineered for safety:
- US TR (tamper-resistant) receptacles
-
USB over current/voltage/temperature and short circuit protection.
PowerHub Pro US
TA-7545US
PowerHub Pro takes the PowerHub range to a new level. The use of the latest GaN technology enables USB charging across 3 outlets up to an amazing 50 watts combined with 2 tamper resistant AC outlets. The USB Type-C outlets feature USB Power Delivery (PD) making them ideal for charging tablets and even small to medium laptops!
Key Features
-
Provides guests with 2 easy-to-find electrical outlets and 3 USB charge ports.
-
Designed for installing flush into furniture, millwork, or case goods.
-
Fast-charging USB ports support a wide range of portable devices.
-
Passthrough US 3-pin plug. Don’t lose a precious outlet in your guest room.
-
UL Certified to UL962A, UL498 and UL1310.
-
Engineered for safety:
- US TR (tamper-resistant) receptacles
-
USB over current/voltage/temperature and short circuit protection.
PowerHub Pro US Key Features
PowerHub Pro US Key Features
PowerHub Pro US Specifications
- Input: Integrated cable (2m or 3m depending on model) with passthrough US 3-pin plug. Requires 1 x US NEMA 5-15R outlet (125V/15A).
- Outputs: 2 x US 3-pin, tamper-resistant AC outlets, 10A max. shared. 3 USB Ports (2 x USB-C, 1 x USB-A) total 50W max.
- One USB Used: USB-C1 PD3.0: 5V3A/9V3A/15V3A/20V2.25A, 45W, OR USB-C2 PD3.0: 5V3A/9V3A/15V3A/20V2.25A, 45W, or USB-A 5V2.4A,12W.
- Two USB's Used: USB-C1 PD3.0: 5V3A/9V3A/15V2A/20V1.5A 30W and USB-C2 PD3.0: 5V3A/9V2.22A 20W, OR USB-C1 PD3.0: 5V3A/9V3A/15V2A/20V1.5A, 30W and USB-A 5V2.4A,12W, OR USB-C2/USB-A 5V3.4A,17W shared.
- Three USB's Used: USB-C1 PD3.0: 5V3A/9V3A/15V2A/20V1.5A, 30W and USB-C2/USB-A 5V3.4A,17W shared.
- Safety: USB over current/voltage/temperature and short circuit protection.
- Certification: UL Certified to UL962A, UL498, UL1310. FCC Part 15b.
PowerHub Pro US Downloads
TA-7545US PowerHub Pro Datasheet.pdf
TA-7545US PowerHub Pro Install Guide Online.pdf
PowerHub Pro US Specifications
- Input: Integrated cable (2m or 3m depending on model) with passthrough US 3-pin plug. Requires 1 x US NEMA 5-15R outlet (125V/15A).
- Outputs: 2 x US 3-pin, tamper-resistant AC outlets, 10A max. shared. 3 USB Ports (2 x USB-C, 1 x USB-A) total 50W max.
- One USB Used: USB-C1 PD3.0: 5V3A/9V3A/15V3A/20V2.25A, 45W, OR USB-C2 PD3.0: 5V3A/9V3A/15V3A/20V2.25A, 45W, or USB-A 5V2.4A,12W.
- Two USB's Used: USB-C1 PD3.0: 5V3A/9V3A/15V2A/20V1.5A 30W and USB-C2 PD3.0: 5V3A/9V2.22A 20W, OR USB-C1 PD3.0: 5V3A/9V3A/15V2A/20V1.5A, 30W and USB-A 5V2.4A,12W, OR USB-C2/USB-A 5V3.4A,17W shared.
- Three USB's Used: USB-C1 PD3.0: 5V3A/9V3A/15V2A/20V1.5A, 30W and USB-C2/USB-A 5V3.4A,17W shared.
- Safety: USB over current/voltage/temperature and short circuit protection.
- Certification: UL Certified to UL962A, UL498, UL1310. FCC Part 15b.
PowerHub Pro US Downloads
TA-7545US PowerHub Pro Datasheet.pdf
TA-7545US PowerHub Pro Install Guide Online.pdf
